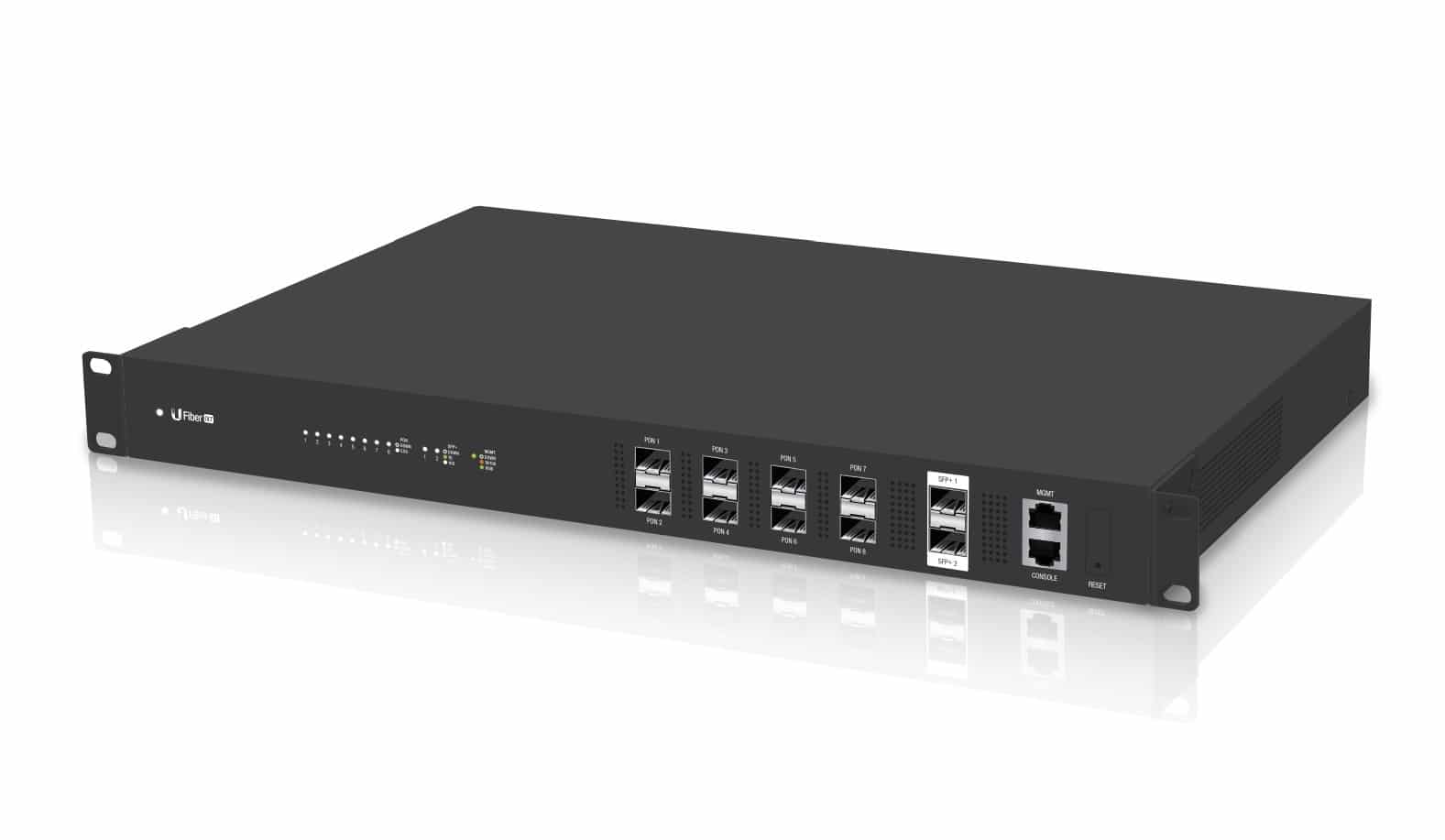

Description

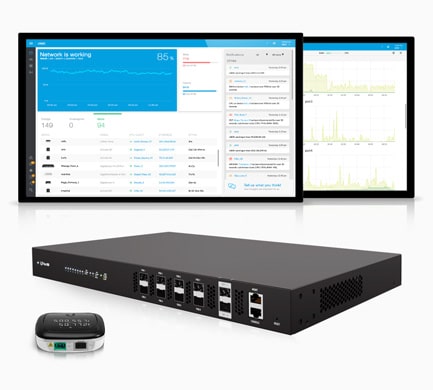

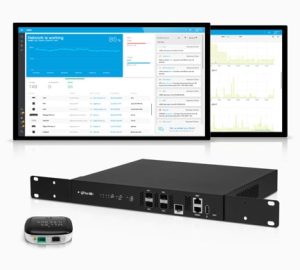

Centralized Management
Easily configure the OLT and manage multiple sites using the comprehensive UNMS™ (Ubiquiti® Network Management System) software.

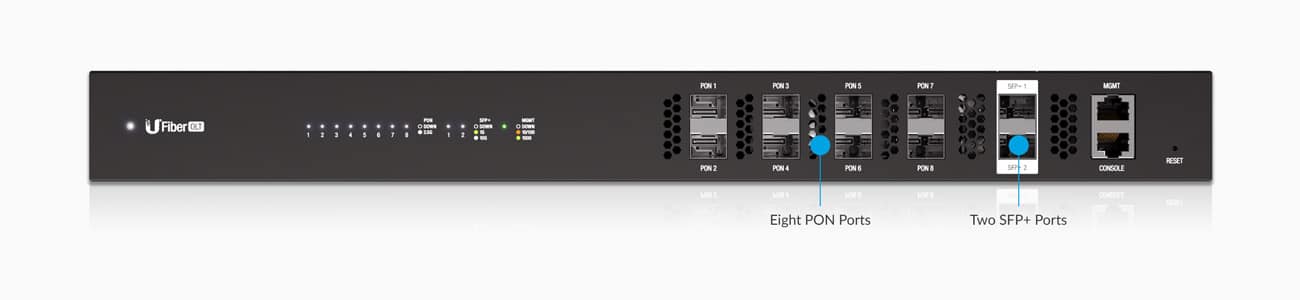

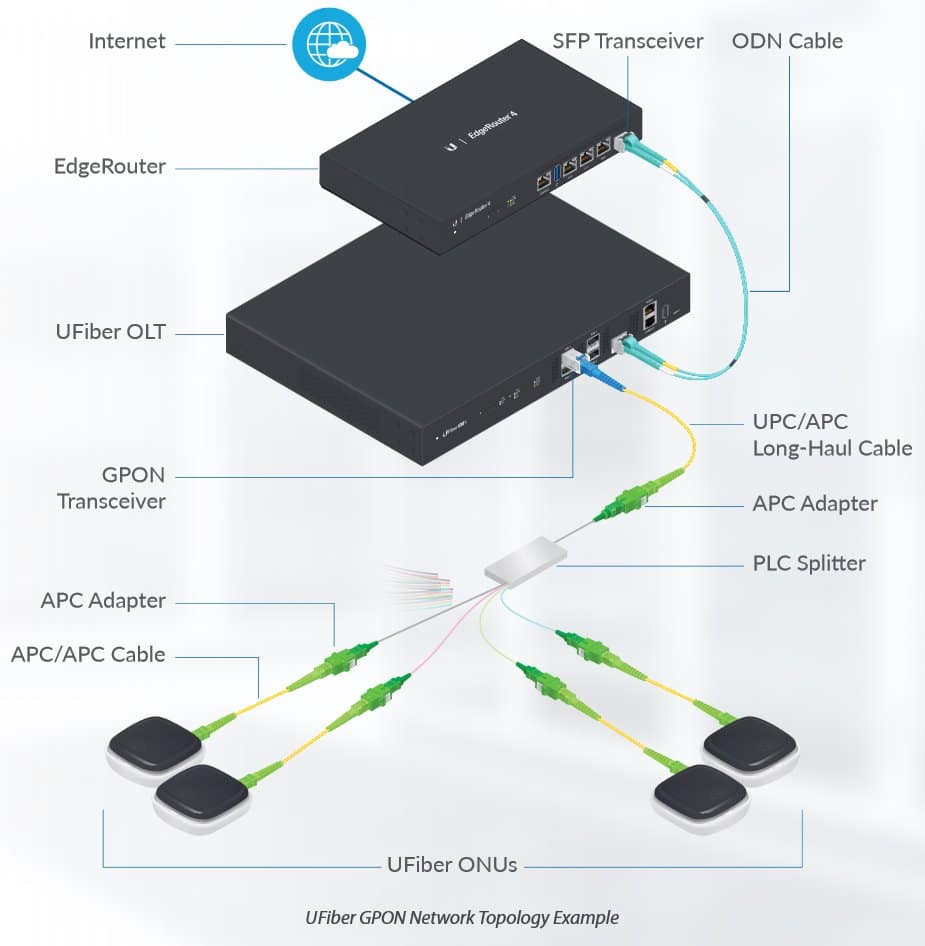

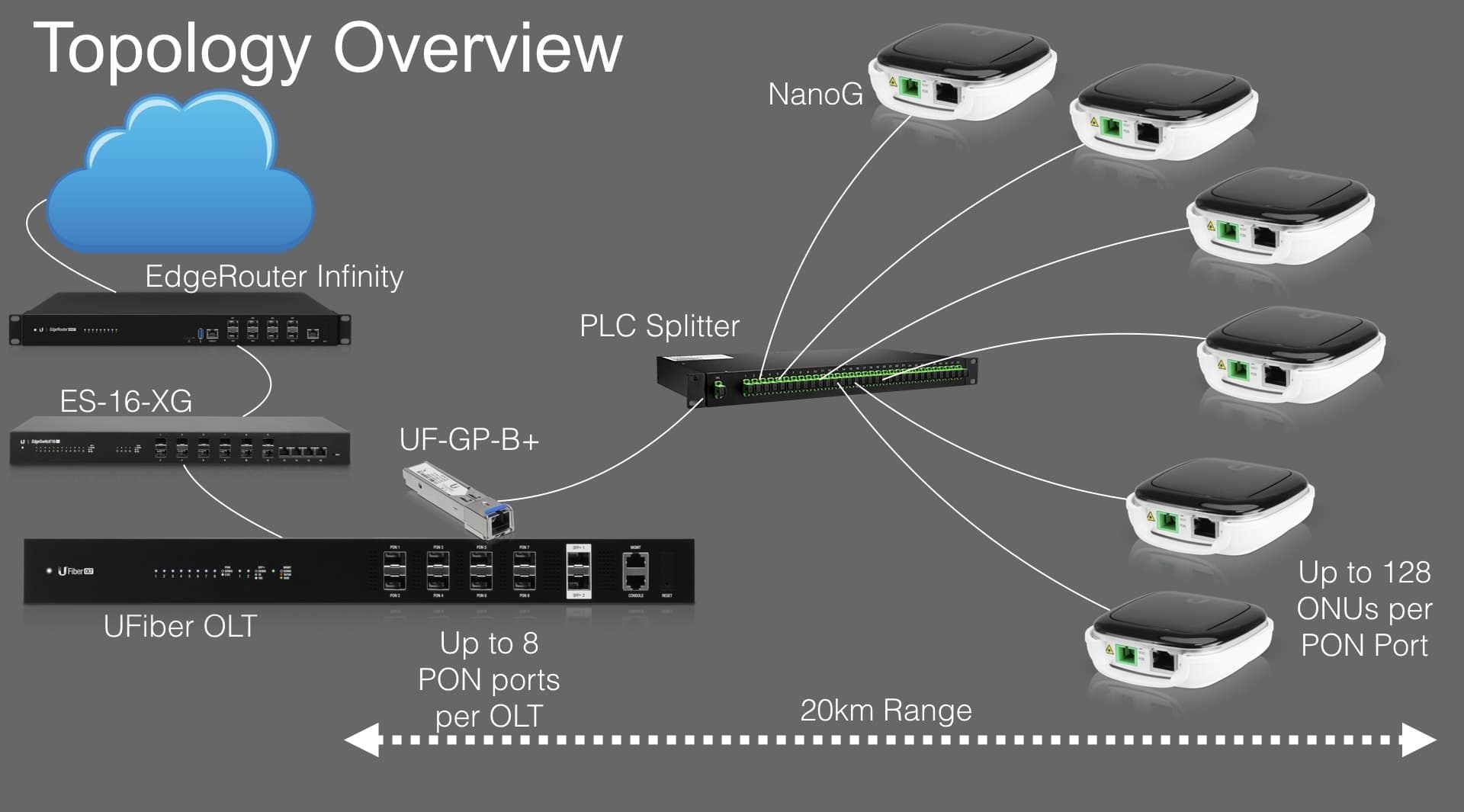

Client and Uplink Connectivity

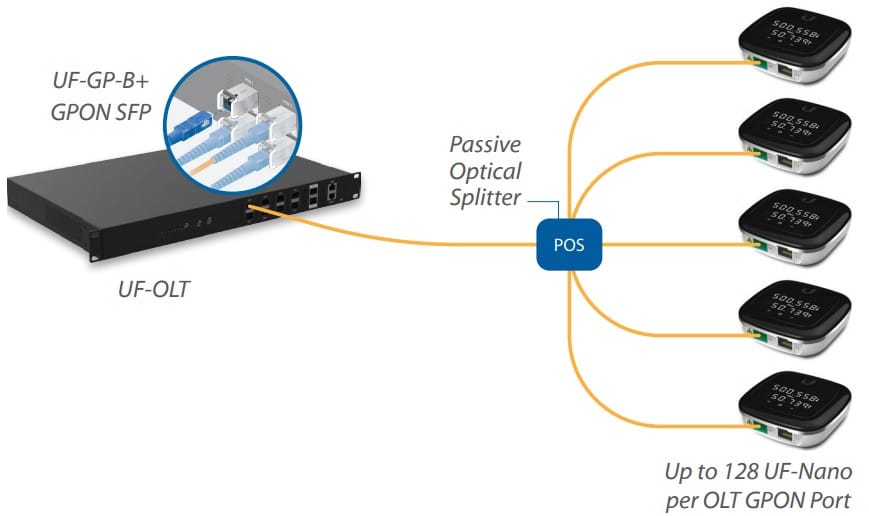

The OLT features eight PON ports to connect up to 1024 Nano G devices, and two SFP+ ports deliver up to 20 Gbps of uplink connectivity.

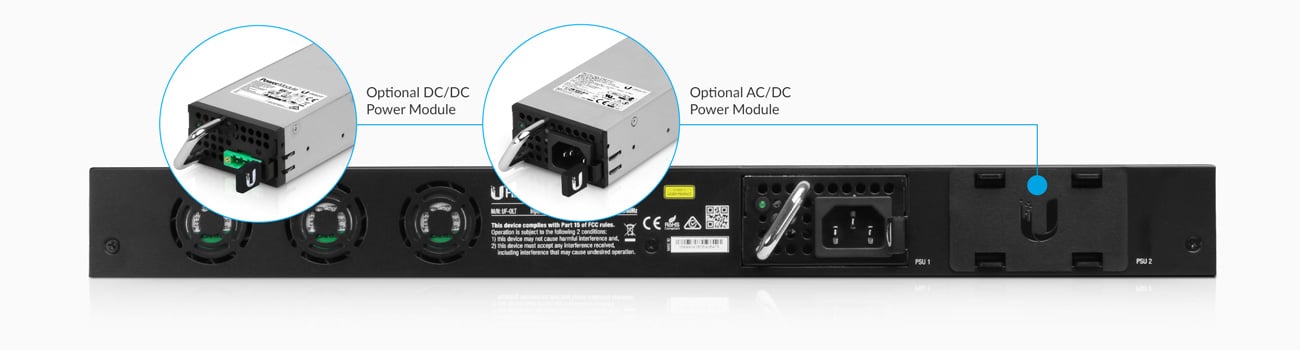

Power Versatility
Featuring low power consumption, the OLT offers two modular power bays. The first bay includes an AC/DC power module. The second bay can house an optional power module, either an AC/DC backup or a DC/DC power module.

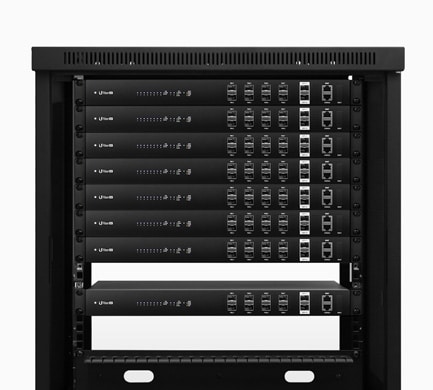

Rackmount Design
The 1U-high metal chassis allows for convenient mounting in a standard-sized, 19″‑wide rack.
| Management features | |
| Switch type | managed |
| Quality of Service Support (QoS) | Yes |
| Web-based management | Yes |
| Connectivity | |
| Type of network sockets RJ-45 for basic switching | with no |
| Number of places for SFP units | 8 |
| Number of places for SFP + units | 2 |
| Socket Console | RJ-45 |
| Network | |
| 10G support | Yes |
| Optical Fiber | |
wavelength  |
1490 |
| Design | |
| Chassis installation | Yes |
| Physical size of the drive | 1U |
| Reset button | Yes |
| Certification | CE, FCC, IC |
| Execution of | |
| Built-in processor | Yes |
| CPU frequency | 880 |
| Type of memory | DDR3-SDRAM |
| Internal memory | 512 |
| Energy management | |
| Including power supply | Yes |
| AC input voltage | 100 – 240 |
| Power consumption (maximum) | 40 |
| Environmental conditions | |
| Relative humidity range in operation | 10 – 90 |
| Weight and dimensions | |
| width | 442.4 |
| depth | 285.6 |
| Weight | 4.4 |
| Additional features | |
| Boat input power | 25 |
