Description

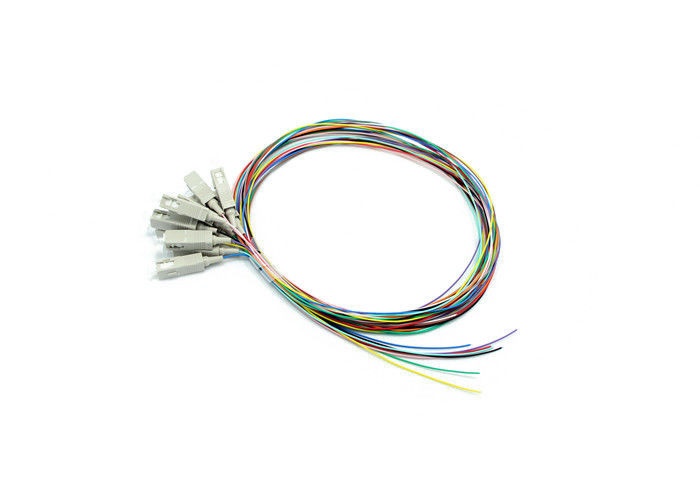

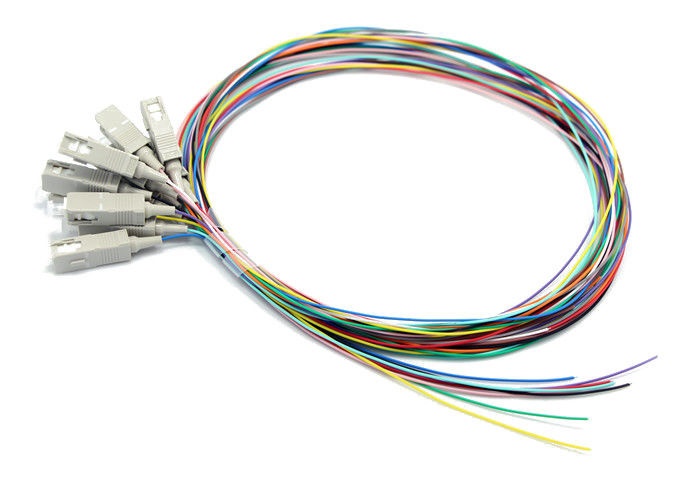

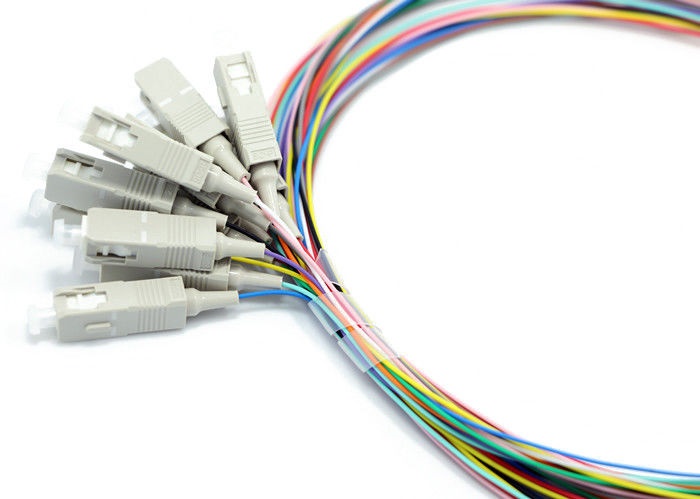

12pcs 12 Colors SC PC Optical Fiber Pigtail set OM2 50 / 125μm 0.9mm 2M LSZH Loose buffer easy to strip LSZH
Pigtails are used for splice applications when terminating outside plant cable. It’s consists of a connector and a special length.
It’s consists of 12pcs of Simplex pigtail.12pcs is a unit. Meets Telcordia GR-326 Core and ROHS requirements.
The connector could be SC, FC, LC, ST, MU, and E2000etc.
The cable could be G652D, G655, G657, OM1, OM2, OM3, OM4 etc.
The cable size could be 0.25, 0.9,
There are 12 colors for your option.
Both 250um and 900um is same colored, easy to identify and make right splice.
Tight buffer, semi-tight buffer. Loose buffer are available
Products info
| Fiber count | 12 | Fiber Mode | 50/125μm |
| Connector Type1 | SC/PC | Connector Type2 | Unterminated |
| Fiber Mode | MM | Breakout length | 0.5m |
| Wavelength | 850/1310nm | Jacket Material | LSZH |
| Insertion loss | ≤0.3dB | Interchangeability | ≤0.2dB |
| Return loss | ≥35dB | Vibration | ≤0.2dB |
| Operating temperature | -40~75°C | Storage temperature | -45~85°C |
